Mal-2 Userguide

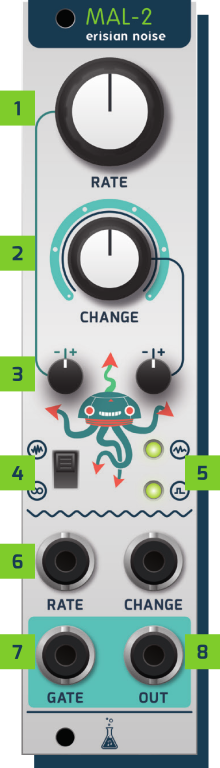

Controls



1:) Signal Frequency

Frequency range is selectable with a jumper on the PCB.



2:) Controls the shape of the signal.

Fully clockwise is completely random, anti clockwise is controlled by the mode switch.



3:) Attenuverters for the rate and change CVs



4:) Mode switch

Selects the anti clockwise shape.

Up: Random walk

Down: Repeating 8-step sequence



5:) Signal and gate LED



6:) CV Inputs for rate and change control(+/-5V)



7:) Gate output

A gate signal is generated whenever the CV out reaches its middle value



8:) CV output selectable via jumper between 0 to 10V and -5 to +5V

Firmware update



The firmware can be updated by playing back a special audio file to the CHANGE CV in jack.



To update the firmware:



  • Download the current firmware image here malaclypseJr_v1.0.wav
  • Connect an audio player to the CHANGE CV in jack
  • Turn the power on
  • The LED will start to flash green for a short moment
  • If the switch is moved during this time, the firmware update mode is started and the flashing turns red.
  • Start the playback of the firmware audio file
  • The LED will change to a slow green flash while the firmware update is in progress
  • When the audio file has finished the module will reboot with the new firmware.
  • A constant red LED indicates a read error. Probably your output volume is too low.
  • You can move the switch to try again.
  • If the LED just goes off, your audio volume is too low, too. Amplify the signal and try again.
  • Some audio players are not loud enough. In that case use an additional amplyfier/mixer between your player and the module.
