Descent

Double decay envelope

Overview

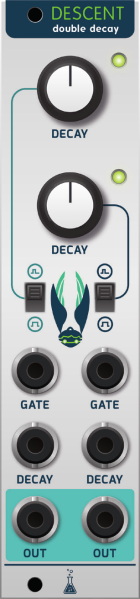

Descent is an analogue dual envelope generator. It provides 2 independent voltage controlled decay EGs. The envelopes can be switched between triggered or gated (sustain) mode. The first trigger input is normalized to the second one and each channel provides a LED to visualize the envelope signal. The shape of the envelope can be adjusted between lin/exp with a trimmer on the back of the PCB. Decay times are adjustable between a few ms up to several seconds.



It comes as a complete kit with all needed parts to build it. That includes a multi colour aluminum frontpanel, high quality jacks and smooth 9mm metal pots.



The project is open source, so the schematic is available, too.



Specs

Current draw: +12V 70mA | -12V 30mA

Width: 6HP Depth: 40mm

CV input voltage: +/-5V

CV output voltage: 0-8V



More information



Manual



Assembly guide



Schematics
