TuBika (formally Ambika) six voice polyphon  synthesizer

DIY experience =middle/ hard

We offer Tubika  as a  DIY kit. DIY scills 'middle/ hard'  - not for beginners

technical specs are



  • six voice polyphon
  • four different filter boards  available
  • Arp   for each voice
  • DIY friendly
  • power 9 Volt  minimum 1A  AC  , better 1,5A AC ( not include in the kit)
Buy it , go to the shop
TuBika manuals , Motherboard and filterboards , click here !

Here you find all manuals , BOMs , Firmware for Ambika/TuBika

TuBika (formally known as Ambika) is a six voice poly DIY ( do it yourselve)  synthesizer.

Here  you get all parts and  PCB‘s you need to build/solder it yourself.



The concept behind TuBika are digital oscillators in combination with analog filter‘s and VCA‘s.

Four Filtercards   with different flavors are available. 4P, SMR4, SVF and ladder.

You can  combine  different voicecards. 6x  multi mode is also possible.

Each voice had it‘s own ARP and Step-Sequencer.

Maximal  six voice polyphon ,  MIDI  controlled.



Available filterboards are

  • SMR4PLUS          sound is rolandish LP only
  • P4,                       sound is punchy LP only
  • Ladder,                sound  good for bass, three mode, soft dist, normal, crunch
  • SVF,                     sound  LP,PB,HP, punchy





Ambika Demosounds with different filterboards on soundcloud

 four different filterboards/voicecards

SMR4-Plus

Ladder

4P

SVF

Buy Filterboards , go to the shop

All filterboards have it's own flavor .

I suggest you to use for poly play 6x the same Filterboard  or 4x the same and 2 different

A good combination is  4xSMR4-Plus  and 2 differenf Filterboards like 4p and SVF or SVF and Ladder .



the default filterboards   in a complete kit are  6x  SMR4-Plus , usefull for all kind of Music



  • SMR4PLUS           sound         rolandish LP only
  • P4                          sound         punchy LP only
  • Ladder                   sound         deep , crunch, three modes
  • SVF                       sound         LP,PB,HP, punchy

TuBika DIY overview

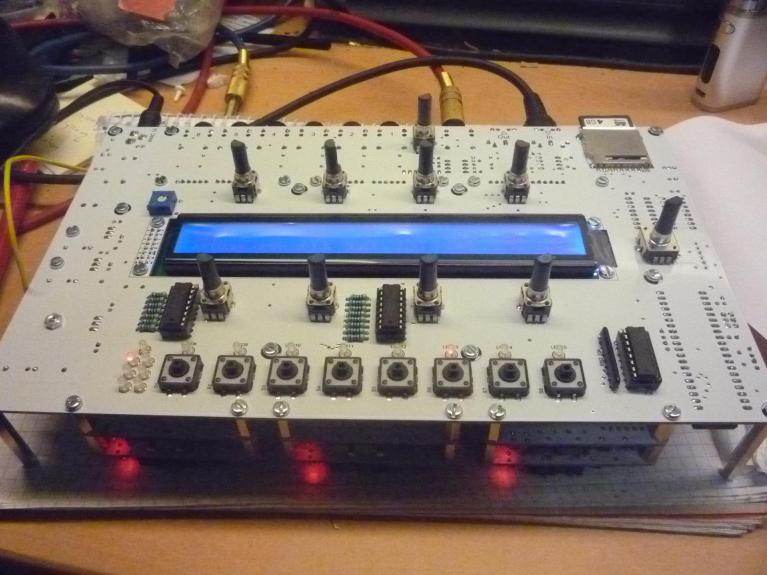

TuBika in work, top side

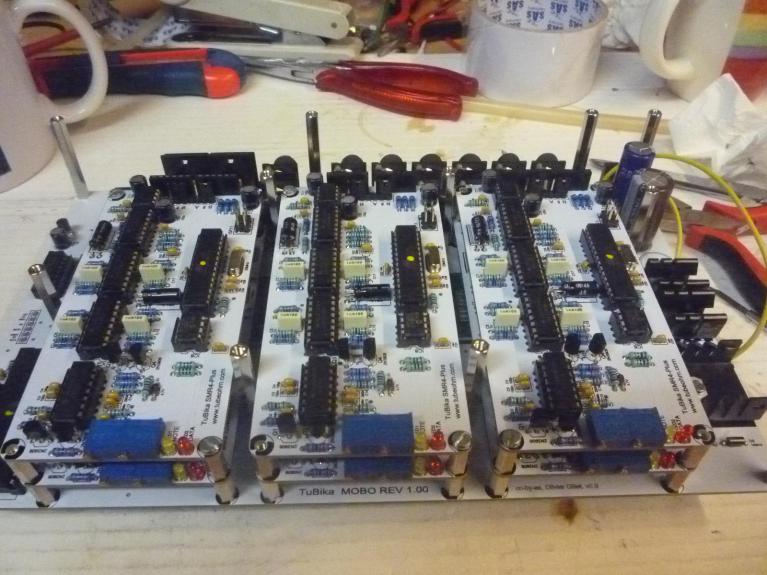

Tubika bottom 6 Voices   are installed

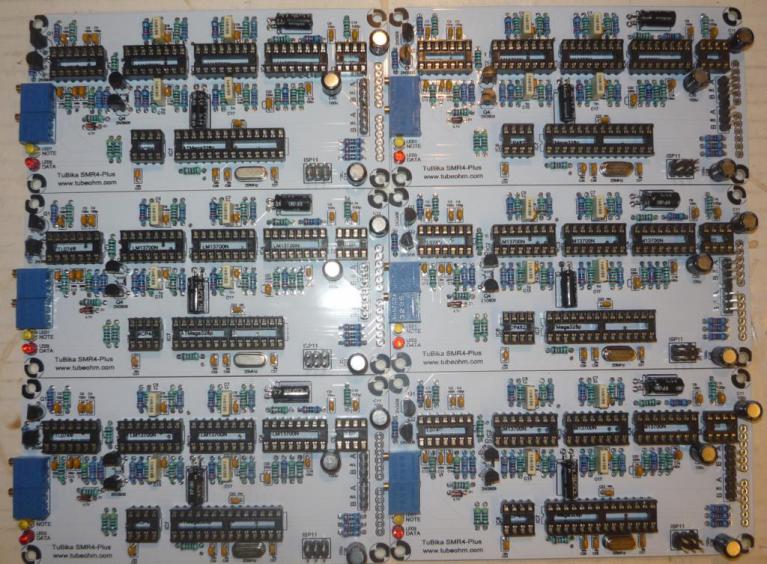

here are the filterboards,6 x SMR4-plus

The TuBika DIY kit contains all electrical and mechanikal parts you need to bring TuBika alive.



Not in the kit is  the Power supply  and the Case.

Include the Kit are all PCB's, the LCD, spacers and screws, Resistors and capacitors, IC's, IC sockets and Atmega CPU - pre progammed.



You can also select  your filtertypes. Same price for SMR4-plus, SVF, Ladder or P4.



Default and good sounding filter are the SMR4plus - usefull for all kind of music



I recomend  4 x the same voice - SMR4 for example and 2 different filter like 1x Ladder 1x SVF or 4P.

If you want to play only poly  you should use 6x the same filterboards , SMR4-plus  for example.

Building time : motherboard 2..3 hours , each Voicecard  2 hours, adjustment and case mounting 1..2 hours.

Building time means   solder the parts , clean the PCB , check all parts again  , solder points  are OK ??

mesaure the Voltafge on the testpoints and so on . We are not in a race . Good  mounting  take its time.

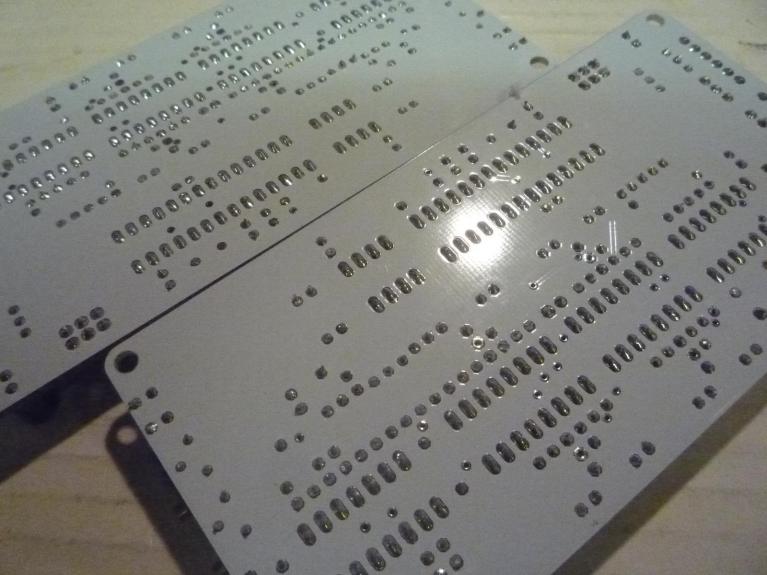

solder works
